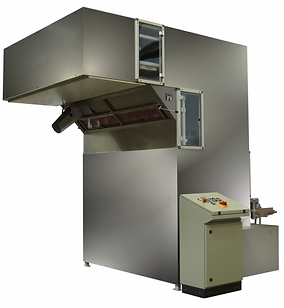

INTERMEDIATE PROOFER IK

The intermediate proofer IK is designed for intermediate resting of wheaten and rye-wheaten
(with a content of rye flour up to 30%) dough pieces between round and final moulding operations,
allowing the products to obtain the optimal elasticity and structure required for high quality final moulding.


ADVANTAGES

  • Complete adaptability to the requirements of the bakery concerning both space limitations and product's characteristics.

  • Automatic loading, adapted to the whole line's capacity.

  • Resting pockets made of a material preventing dough sticking and moisture
    absorbtion.

  • Easily removable resting pockets.

  • Germicide lamps preventing mildew.

  • Inspection window.

  • Easy access facilitating cleaning.

  • Teflon-coated dough transfer and out-feed system.

TECHNOLOGICAL AND TECHNICAL CHARACTERISTICS*

Intermediate proofer equipped with single loading conveyor:

Intermediate proofer equipped with double loading conveyor:

Different capacities, weight of dough pieces, resting time and nr. of effective pockets
available upon request.
* valid for 50 Hz

BASIC VERSION OF THE MACHINE INCLUDES 1

  • loading V-shaped conveyor (single loading)

  • double loading (2 pockets at a time) with a single loading conveyor (diverting flap) (double loading)- Welded steel frame, painted

  • painted frame and swings

  • plastified platings

  • basic electrical equipment

  • 8 pockets per swing (weight range per pocket 100 – 1500 g)

  • adjustable speed of the proofer and loading conveyor

SPECIAL OPTIONS

  • 12 pockets per swing

  • loading with a tandem loading conveyor

  • outlet flap

  • different heights

  • version for weight up to 2200 g

OPTIONS

  • stainless steel frame and swings

  • stainless steel platings

  • stainless steel swings

  • ultraviolet lamps

  • two additional outlets

  • encoder

NOTE

max. weight proofing (8 pockets per swing): up to 1500 g up to 30 min
proofing time; up to 1600 g from 12-15 min proofing time. For all other
cases should be consulted.
*valid for 50 Hz
1 Installed power 7 kVA, machine weight from 700 – 1600 kg
